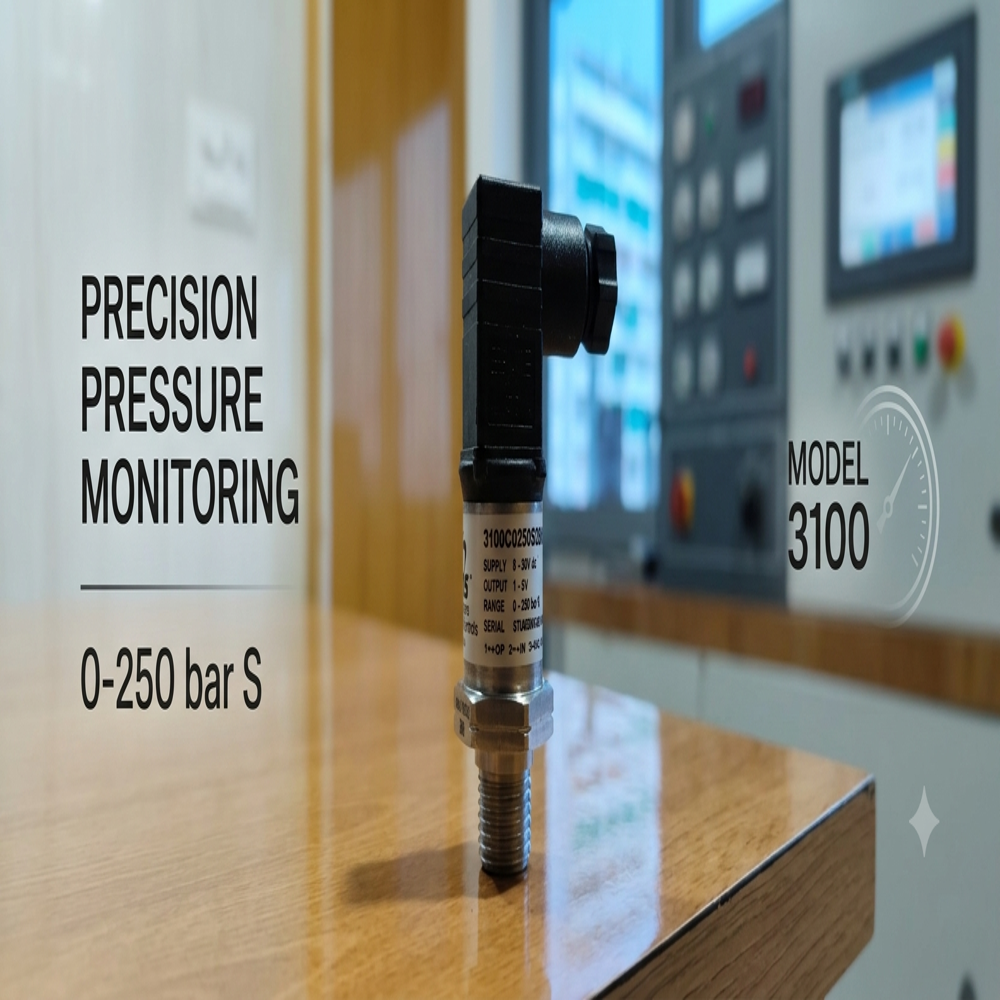

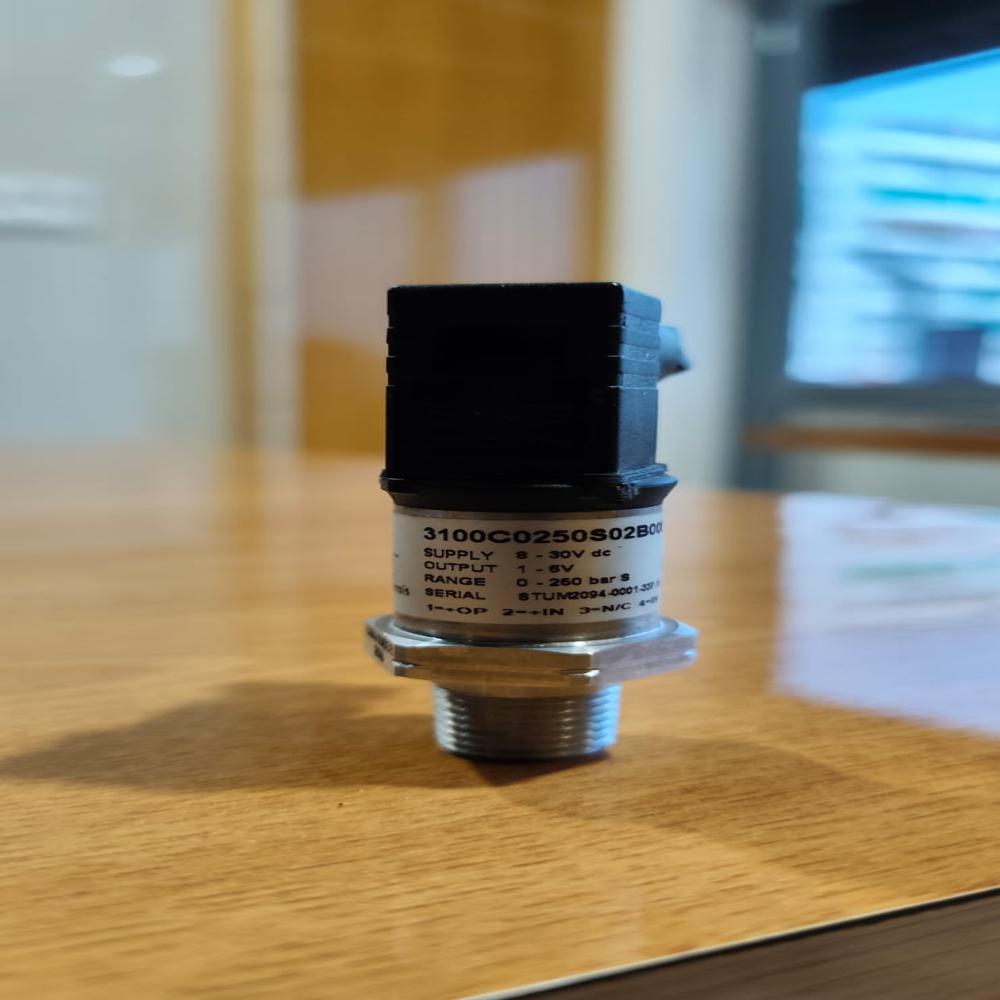

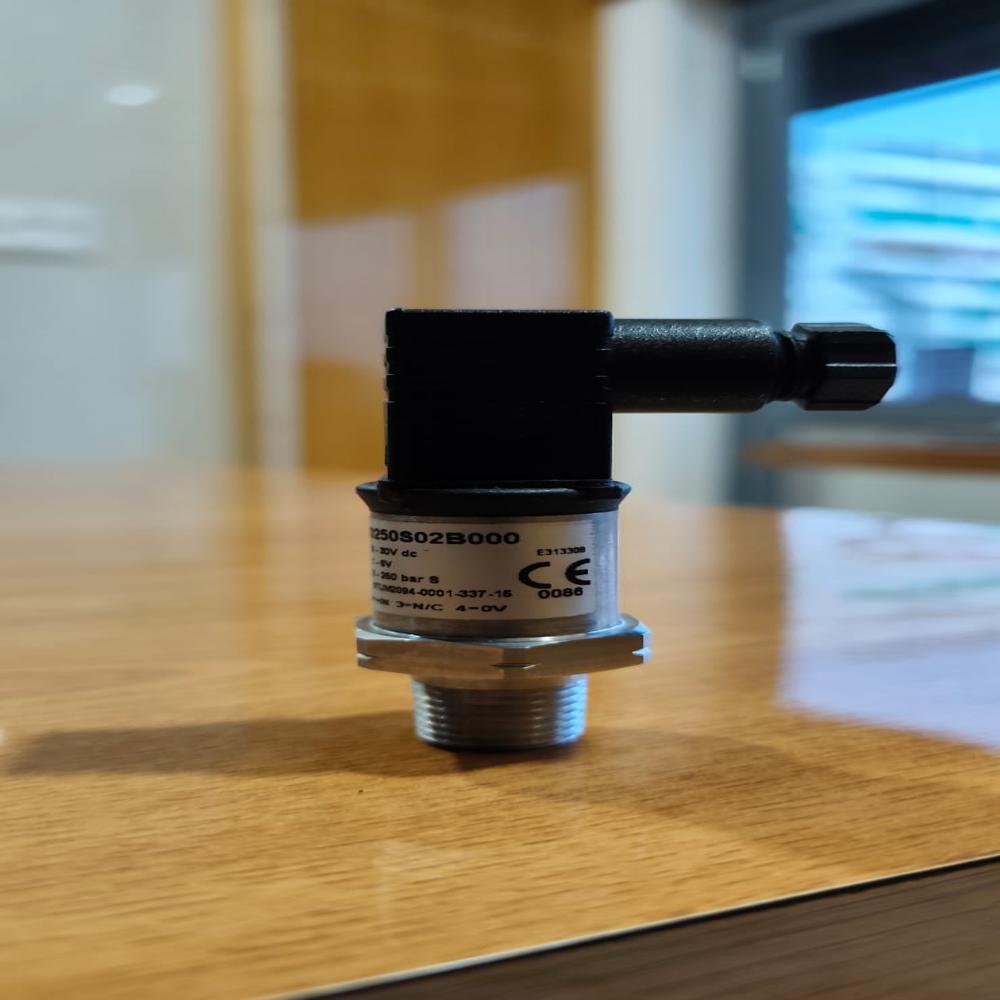

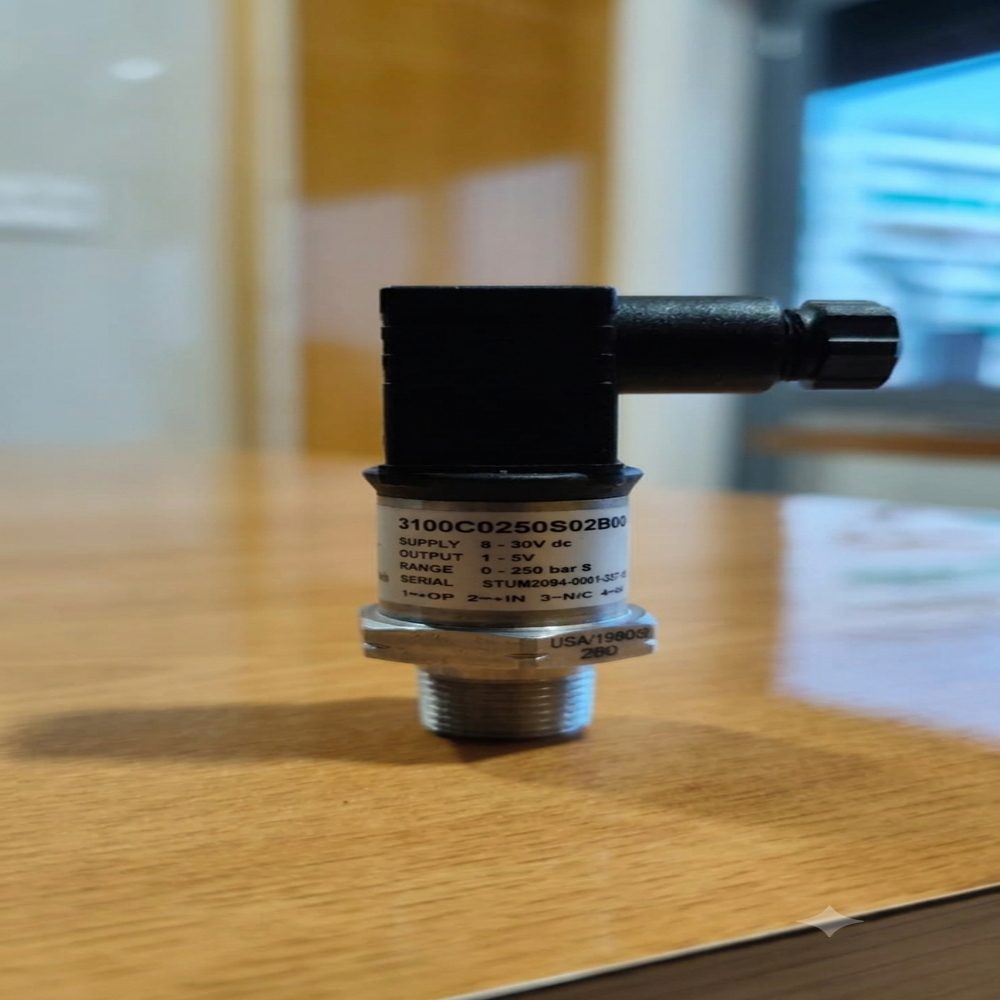

GEMS Pressure Transmitter 3100C0250S02B000

Send Inquiry

Request To Call Back

GEMS Pressure Transmitter 3100C0250S02B000

Name: GEMS Pressure Transmitter 3100C0250S02B000
Brand: R S SALES & SERVICES
Price: 4520.0 INR
Availability: InStock

Price 4520.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GEMS Pressure Transmitter 3100C0250S02B000 Specification

Interface
2-wire connection

Application
Hydraulic and Pneumatic Systems, Process Control, OEM Equipment

Mounting Type
Threaded

Sensitivity
0.2% FSO

Signal Type
Analog Current (4-20 mA)

Sensor Type
Strain Gauge Sensor

Operating Temperature
-40C to +125C

Measurement Range
0 to 250 Bar

Features
Compact Design, High Accuracy, Corrosion Resistant.

Response Time
<1 ms

Power Consumption
< 0.5W

Ingress Protection
IP67

Housing Material
SS

IP Rating
IP67

Cable Length
Standard 1.5 m

Wireless
No

Mounting Thread
1/4

Product Type
PRESSURE TRANSMITTER

Material
316L Stainless Steel

Input
Pressure

Output
4-20 mA

Function
Pressure Measurement and Transmission

Usage
INDUSTRIAL

Accuracy
0.25% Full Scale

Resolution
0.025% Full Scale

Voltage
9 to 32 VDC

Weight
Approximately 85 g

Span Tolerance
<1% FSO

Zero Offset
<1% FSO

Shock Resistance
100g, 11ms

Vibration Resistance
20g, 20Hz to 2000Hz

Overpressure Limit
2x Full Scale (500 bar)

Compensated Temperature Range
-20C to +85C

Pressure Port
1/4" BSP Male

EMC Compliance
EN 61326

Electrical Connection
DIN EN 175301-803 (Formerly DIN43650) Connector

Enclosure Material
316 Stainless Steel

Media Compatibility
Liquids and gases compatible with stainless steel

Burst Pressure
5x Full Scale (1250 bar)

GEMS Pressure Transmitter 3100C0250S02B000 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About GEMS Pressure Transmitter 3100C0250S02B000

3100 Series and 3200 Heavy Duty Series Compact OEM Pressure Transmitters Exceptional Long Term Stability 0-100 psi to 0-30,000 psi Ranges (0-7 bar to 0-2,200 bar) High Proof Pressures with All Stainless Steel Wetted Parts Broad Choice of Outputs, Electrical Connectors, and Pressure Ports Dual Pressure and Temperature Sensing option 3100 and 3200 Series offer high levels of stability and reliability with proven sputtered thin film technology and unbeatable price performance ratio in a small package size. A broad choice of electrical and pressure connections allow stock configurations to suit most applications without modification.

Engineered for Industrial Reliability

Manufactured with 316L stainless steel, the GEMS 3100C0250S02B000 pressure transmitter excels in demanding industrial settings. Its rugged housing and IP67 protection provide reliable operation in harsh conditions, while resistance to shock (up to 100g) and vibration (up to 20g) ensures stable performance. This transmitter is suited for applications in hydraulic and pneumatic systems, OEM machinery, and process control environments, where consistent accuracy is a must.

Precision and Fast Response for Critical Measurement

Featuring a strain gauge sensor and an analog current output of 4-20 mA, this transmitter provides rapid response times (<1 ms) for real-time pressure readings. Accuracy is maintained within 0.25% of full scale, and the device is compensated for temperatures ranging from -20C to +85C, offering minimal measurement drift and excellent repeatability. Its sturdy enclosure delivers long-term reliability in various media compatible with stainless steel.

Easy Integration and Compliance

With its standard 1/4" BSP male mounting thread, 2-wire electrical interface, and DIN EN 175301-803 connector, the GEMS transmitter integrates seamlessly into modern control systems. EMC compliance (EN 61326) ensures it operates safely where electromagnetic interference is a concern. The compact design allows for installation in confined spaces, and a standard 1.5 m cable provides installation flexibility.

FAQ's of GEMS Pressure Transmitter 3100C0250S02B000:

Q: How can the GEMS Pressure Transmitter 3100C0250S02B000 be integrated into my industrial process control system?

A: Integration is straightforward using the 1/4" BSP male threaded port and the DIN EN 175301-803 electrical connector. The analog current (4-20 mA) output is compatible with most PLCs and monitoring systems. Its 2-wire interface makes wiring simple and efficient.

Q: What environments and media is this transmitter compatible with?

A: The transmitter is engineered for use in hydraulic systems, pneumatic equipment, and general process control. Its 316L stainless steel construction allows it to safely measure the pressure of liquids and gases that do not corrode stainless steel.

Q: When should I consider using this pressure transmitter over other models?

A: Choose the 3100C0250S02B000 model when you require a compact, highly accurate transmitter capable of withstanding extreme temperatures (-40C to +125C), high shock (100g), and vibration (20g) while offering protection against dust and water (IP67).

Q: Where can I install this transmitter in my application?

A: It is suitable for installation in any industrial setting where standard 1/4" BSP male threads are accepted. This includes hydraulic and pneumatic lines, process vessels, OEM equipment, and nearly any application demanding precise pressure monitoring.

Q: What benefits does this pressure transmitter offer in terms of accuracy and reliability?

A: The unit delivers an accuracy of 0.25% full scale, rapid response time (<1 ms), and is constructed from corrosion-resistant materials. Its overpressure (500 bar) and burst pressure (1250 bar) ratings further enhance operational safety and device longevity.

Q: How does the transmitter maintain performance in environments with high levels of vibration and shock?

A: Designed to withstand 20g vibration from 20Hz to 2000Hz and shock loads up to 100g for 11 ms, the pressure transmitter excels in dynamic applications where mechanical stresses are frequent, maintaining signal integrity and measurement stability.

Q: What is the process for commissioning the transmitter after installation?

A: After mechanical and electrical installation, confirm correct wiring of the 2-wire 4-20 mA loop. Check that the device is installed into media compatible with stainless steel and verify performance within the compensated temperature range (-20C to +85C) for optimal accuracy.
